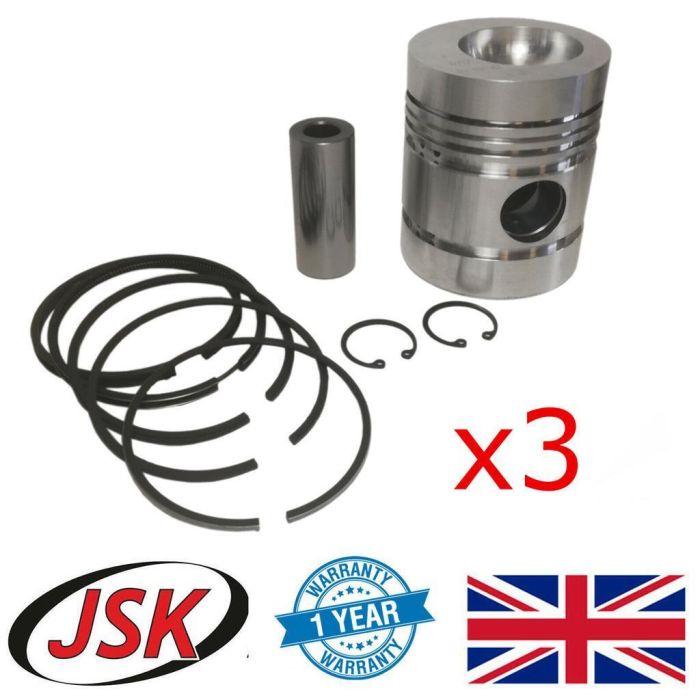

Three Pistons with Three Pins, Fifteen Rings & Six Circlips
This is the 5-Ring Type Piston
(Not the later 4-ring version)
For 91.47mm Bore Diameter
Kits including liners are also available from our store
Piston replaces part numbers:
JCB 02/130017
Landini 41158059, 141158059,
Leyland AHM2188,
Massey Ferguson 3639048M1, 4223940M91, 4223940V91, 734466M91, 734467M91, 743824M91, 743824Z91, 745820M91
Perkins 59618, 68332, 82111, 82112, 82137, 82147, 82906, U5LH0010, U5LP0016, U5LU0014, U5LU0027,
Volvo PE68332,
For Perkins Engines:
AD3.152 & AD4.203
(Aka D3.152, D4.203, CE & JE Engines)
These are not the same as an A3.152 or A4.203 engine
If you are unsure which engine you have then please get in touch and we can help
Used in:
Allis Chalmers
160, 6040,
Ebro
460,
Eicher
3155, 3255, 4038, 4048, 4048A, 4056, 4056A, 4060, 4060A,
Koenigstiger 74, Koenigstiger 74A,
Mammut 1, Mammut 2,
JCB
2CX, 406,
Landini
4000, 4530,
5000, 5500, 5530, 5530F, 5560, 5560F, 5830, 5840, 5860, 5870,
6000, 7000,
Advantage 55, Advantage 60,
Blizzard 50,
C4500, C4830, C5000, C5500, C5830, C6000,
CF4830, CF5030, CF5830,
Globus 50,
Rex 55,
Trekker 55,
Leyland / Leyland Marshall
245, 253, 502,
Massey Ferguson
20, 20 Turf, 20B, 20C, 20C, 20D, 20E, 20F, 30, 30B, 30E, 30H, 30 Turf, 40, 40B, 50, 50A, 65,
134C, 135, 140, 145, 147, 148, 150, 154, 154-4, 155, 158, 165,
203, 230, 231, 233, 234S, 235, 240, 240S, 245, 250, 250X, 254, 254S, 255, 260, 265, 282,
302, 304, 350, 353, 354GE, 354S, 354V, 415, 550, 765,
2135, 2200, 2203, 2205, 2605,
3165,
DT4500, DT7000,
Nissan
6040, 6045,
Renault
Super 7 D
Volvo
T400, T430,
